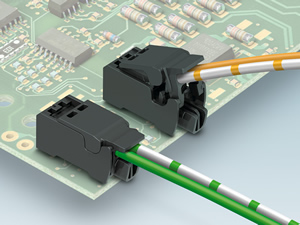

Extremely small - the new IDC PCB terminal block from Phoenix Contact with fast connection technology

With a width of 7 mm and a height of 8 mm, the new two position PTQ mini PCB terminal block is one of the smallest terminal blocks on the market that can be operated without tools and rewired.

The blade is designed in such a way that both solid and stranded conductors up to 0.34 mm² can be clamped.
The IDC connection eliminates the need to strip the conductors. This saves valuable time during conductor connection. Just insert the conductor, close the cover, and the conductor connection is complete.

Specially designed for THR soldering processes

Since the trend toward automatic PCB assembly and high-temperature soldering processes has continued, this terminal block has been specially tailored to the requirements of the THR (Through-Hole Reflow) soldering process.

It is packed in a 32 mm tape in order to keep the space requirements on the feeder as low as possible.

Dimensions / positions:

Length	17.5 mm
Height	8 mm
Width	7 mm
Pitch	2.5 mm
Number of positions	2
Pin spacing	2.5 mm
Hole diameter	1.1 mm

Technical data:

Range of articles	PTQ 0,3/..-THR
Insulating material group	IIIa
Rated surge voltage (III/3)	2.5 kV
Rated surge voltage (III/2)	2.5 kV
Rated surge voltage (II/2)	2.5 kV
Rated voltage (III/3)	160 V
Rated voltage (III/2)	160 V
Rated voltage (II/2)	200 V
Nominal current IN	4 A
Nominal cross section	0.34 mm²
Maximum load current	4 A
Insulating material	LCP, colour black
Flammability class according to UL 94	V0
Nominal voltage, UL/CUL Use Group B	150 V
Nominal current, UL/CUL Use Group B	2 A

Connection data:

Conductor cross section solid min.	0.14 mm²
Conductor cross section solid max.	0.34 mm²
Conductor cross section stranded min.	0.14 mm²
Conductor cross section stranded max.	0.34 mm²
Conductor cross section AWG/kcmil min.	26
Conductor cross section AWG/kcmil max.	22
Maximum AWG according to UL/CUL	24
