Introducing the B5W-DB, a longer distance sensor for touchless control solutions from OMRON, samples available from Anglia
The B5W Series of optical sensors from OMRON has been expanded with the addition of the B5W-DB sensor. Having a longer sensing distance of 550mm - longer than light convergent resistance sensors of the same size - utilising its diffuse reflector sensor; the B5W-DB is ideal for use in safe user interfaces, such as washroom equipment, sterilisation equipment and entry control systems.
Featuring enhanced disturbance light resistance, OMRON’s B5W-DB is less susceptible to interference from ambient light sources such as sunlight. It has an impressively low current consumption of just 20mA maximum and can be mounted from four directions. The sensors, in this new range, are very effective at identifying black, transparent, reflective and other hard to detect surfaces, with enhanced performance.

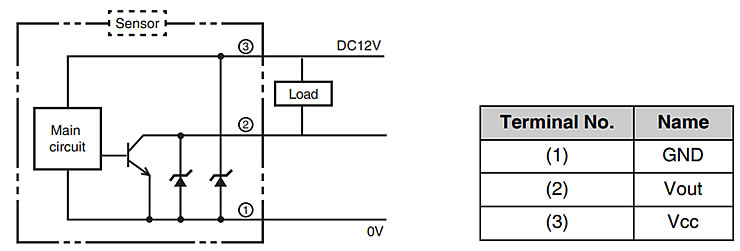

Application Circuit
Touchless sensors, like the B5W-DB, have a lower infection risk, giving users peace of mind when using facilities in washrooms and other public spaces. They can also be used to activate security and door entry systems, or for operating sterilisation equipment, where they can reduce the risk of cross-infection.
The miniature B5W-LB2101 and LB2112 are also still available, alongside the B5W-DB, with analogue or digital outputs, they have a sensing range of 10-55mm for white paper, falling to 10-40mm for black. These devices are sized at 40 x 8.4 x 15.9 mm. For applications requiring a more compact solution, the super-miniature B5W-LB1112 is just 26 x 8.4 x 13mm, yet still offers a sensing distance of 2-10mm for white paper and 3-8mm for black. All digital devices are offered in light-on and light-off form and are sealed to IP50. Read more about the B5W-LB sensors here.
Key Features
- Longer sensing distance of 550mm
- 12 VDC operating voltage
- Enhanced disturbance light resistance, designed to be immune to ambient light
- Maximum current consumption of 20mA
- Operating Temperature range: -10°C to +60°C
- Sealed to IP50 (Not including terminals)
Click here for more information or to buy from Anglia Live.
Click here to download the B5W-DB series datasheet
Anglia are offering customers FREE samples of the B5W-DB longer range reflective sensors from OMRON, please fill in the form below to register for samples now.
Requesting....
To register for FREE samples of the B5W-DB longer range reflective sensors from OMRON, please fill in the form below.
| First name | * |
| Last name | * |
| Company | * |
| Telephone | * |
| Email Address | * |
| Project Name | |
| Project Volume | * |
FREE samples for UK and Ireland customers only, subject to availability.
For more information, or details on the full range of Omron products available from Anglia, please email info@anglia.com
