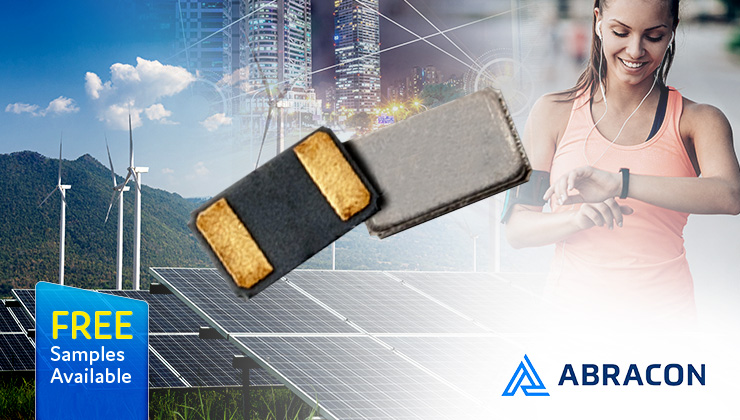

ABSW series of kHz Crystals from Abracon provide the heart beat for low power IoT applications, samples available from Anglia
Abracon is an industry leader in passive components, providing frequency control & timing devices, RF & antenna products, and inductor & connectivity solutions. Abracon have developed a wide range of products for low power and precision IoT applications, this includes their ABSW series of surface mount kHz crystals which have been optimized for IoT and Wearable applications.
The ABSW kHz SMD crystal range is available in 4 different Ceramic package options which are all seam sealed for improved long term reliability. The ABS04W series is the industry’s smallest Tuning Fork Crystal measuring just 1.20 x 1.00 x 0.35 mm, next size up is the ABS05W series measuring 1.6 x 1.0 x 0.5 mm, then the ABS06W series measures 2.0 x 1.2 x 0.6 mm and finally the ABS07W series measuring 3.2 x 1.5 x 0.9 mm. The compact sizes available enable the ABSW to be integrated into space constrained applications such as wearables or compact IoT sensor nodes.
The two key features of the ABSW series is low load capacitance of just 3pF or 4pF (depending on series) and low ESR over the temperature range of the crystals. These features make them ideal for low power applications where they can deliver enhanced performance for start-up time and power savings, for example preventing intermittent start up issues when used with very low energy System on Chips (SoC’s) that are often used in wireless IoT communication modules.
Click to view an introduction to Abracon’s W series Crystals Optimized for the IoT
Offered in 32.768kHz frequency throughout, the ABSW series are available in frequency tolerances down to ±10 ppm for the ABS07W series and down to ±20 ppm for all other series, typical frequency stability is also very good over the specified temperature range for each series. A choice of operating temperature up to +125°C is available on ABS05W/06W/07W and up to +105°C on ABS04W series.
The ABSW series are supplied on tape and reel packaging suitable for automated placement equipment. Typical applications include Wellness and Medical Wearables, Bluetooth and ISM band Wireless Modules, Internet of Things (IoT), Sensor Nodes, Machine-to-Machine (M2M) Connectivity, Near Field Communication (NFC), Ultra low power, energy saving MCU and Energy Harvesting Devices.
Key Features
- Available in 4 surface mount package options
- Seam sealed Ceramic packages for long term reliability
- 32.768kHz Frequency
- Frequency Tolerances down to ±10 ppm available (series dependant)
- Good Frequency Stability over temperature range
- Low Load Capacitance
- Low ESR over temperature range
- Engineered for the IoT
- Choice of Operating Temperature range up to +125°C (series dependant)
- RoHS Compliant
Click here for more information or to buy from Anglia Live.
Click here to download the ABS04W Datasheet
Click here to download the ABS05W Datasheet
Click here to download the ABS06W Datasheet
Click here to download the ABS07W Datasheet
Anglia are offering customers FREE samples of the ABSW series IoT optimised SMD kHz crystals from Abracon, please fill in the form below to register now.
Requesting....
To register for FREE samples of the ABSW series IoT optimised SMD kHz crystals from Abracon, please fill in the form below
| First name | * |
| Last name | * |
| Company | * |
| Telephone | * |
| Email Address | * |
| Project Name | |
| Project Volume | * |
FREE samples for UK and Ireland customers only, subject to availability.
For more information, or details on the full range of Abracon LLC products available from Anglia, please email info@anglia.com
