32.768kHz MEMS resonator from Murata available on short lead-time offers designers viable alternative to Quartz Crystals, samples available from Anglia
Murata’s MEMS resonators are piezoelectric elements that function as mechanical resonators to generate a constant frequency, the recently released WMRAG of 32.768kHz resonators are the smallest currently available on the market.
Utilising MEMS technology has allowed Murata to realize the world’s smallest size resonator with very low ESR characteristics that is currently unachievable by quartz crystal resonators, typically the ESR is 15% lower than equivalent Quartz based technologies. The Murata MEMS resonators achieve excellent frequency accuracy and stable temperature characteristics without the use of active elements to correct the initial frequency and frequency shift by temperature. The device supports high reliability especially in high temperature conditions because it does NOT utilize organic adhesives inside of the package, for this reason they can be used in applications where good high-temperature performance is required, such as in industrial equipment and lighting. This helps designers reduce both power consumption and mounting space in the application.
Murata have also worked with several semiconductor manufacturers including STMicroelectronics to certify the MEMS resonators in reference designs.

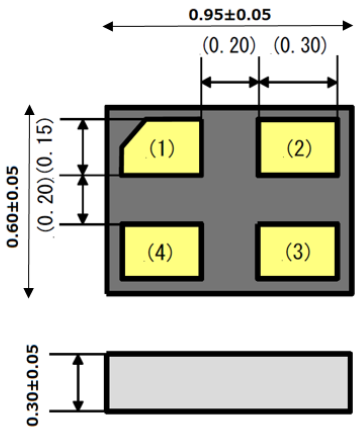

Package dimensions
The MEMS resonators uses an ultra-compact chip scale package (CSP) that incorporates the necessary load capacitance for the oscillation circuit. This enables a reduction in the total oscillation circuit space needed, which helps to reduce the final PCB size. Measuring 0.9 x 0.6 x 0.3mm the WMRAG series resonators occupy just 0.70mm2 of PCB real estate, the compact size and integrated load capacitors within the package mean Murata’s MEMS resonator can occupy up to 65% less space on the PCB compared to a quartz based crystal with external load capacitors.
The MEMS resonators are available in 32.768kHz frequency with the option of 4 different operating temperature ranges of -30°C to +85°C, -40°C to +85°C, -40°C to +105°C and -40°C to +125°C.
Click below for a brief overview of the key features of the Murata MEMS resonator
The Murata MEMS resonators are ideal for use in Real Time Clocks (RTC) circuits found in a wide range of applications including communications, building and factory automation, lighting, industrial equipment, datacoms, portable devices, smart cards, IoT devices, medical, hearables and wearables and many others.
Key Features
- 32.768kHz Frequency
- World's smallest size 0.9 x 0.6 x 0.3mm, occupies just 0.70mm2 PCB space
- Built-in load capacitance
- High temperature capability up to +125°C
- High reliability
- Low ESR
Click here for more information or to buy from Anglia Live.
Click here to download WMRAG Series Flyer
Anglia are offering customers FREE samples of the WMRAG series MEMS resonators from Murata, please fill in the form below to register for your FREE samples now.
