Khatod develops SNAIL Lens for illuminating window and door reveals, samples available from Anglia.
The new SNAIL Lens from Khatod has been designed to enable interior and exterior windows and doors on buildings to be illuminated by highlighting the reveal and frame structures. Thanks to the SNAIL’s excellent blade-shaped beam, the Lens enables designers and architects to realise their vision when creating building lighting schemes.
Unique on the international scene, Khatod specifies and develops the entire product process 100% in house from their manufacturing facility in Milano, Italy. All the operations are held on site: design, development of new technologies, production, post-production processes and testing.
Click below to learn more about Khatod’s capability and a virtual tour of the facility in Italy
The SNAIL Lens has been carefully designed by Khatod to make it compact, unobtrusive and elegant, it gets its name from its distinctive shape which is reminiscent of a Snail. The Lens can be used for single colour or multicolour lighting schemes and is suitable for use with the wide variety of LEDs available on the market.
The SNAIL Lens can be used with clusters made of up to 4 LEDs with up to 2x2mm case size, LEDs can be single colour or mixed such as RGB and White to create complex full colour effects.

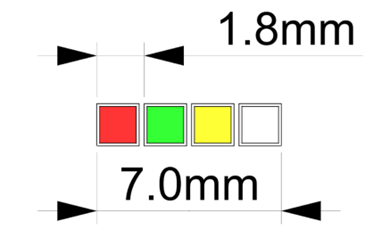

Example layout of Linear cluster using 4 different colour CREE XQ-E HI LEDs
The Lens are compact measuring just 72mm x 45mm including the holder with a height of 27.74mm, despite its compact size the Lens have been designed to provide high optical performance and give an excellent blade-shaped beam ensuring the all of the available light is guided to where it is required.

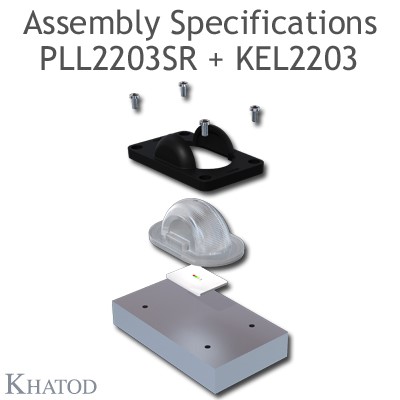

The SNAIL lens and holder have been designed for ease of assembly and are extremely robust.
Constructed from Silicone (Lens) and Polycarbonate (Holder) materials the Lens have been tested to IK10 impact resistance and are water and dust ingress resistant to IP65 standard. Due to the high quality materials used in the SNAIL Lens construction it also offers excellent temperature performance, -40°C to +150°C (Lens) and -40°C to +120°C (Holder).
Click here for more information or to buy from Anglia Live.
Click here to download the PLL2203SR and KEL2203 Data sheet.
Key Features
- High performance Optical design
- Suitable for RGB colour mixing
- Compatible with CREE XQ-E HI LEDs
- Elegant and unobtrusive compact size & shape
- Lens constructed from Silicone material offering resistance to water, dust, impacts (IK10) and extreme temperatures
- Temperature range -40°C to +150°C (Lens) and -40°C to +120°C (Holder)
Anglia are offering customers FREE samples of the SNAIL Silicone Lens and holder from Khatod, please fill in the form below to register for your FREE samples now.
Requesting....
To register for FREE samples of the SNAIL Silicone Lens and holder from Khatod, please fill in the form below.
| First name | * |
| Last name | * |
| Company | * |
| Telephone | * |
| Email Address | * |
| Project Name | |
| Project Volume | * |
FREE samples for UK and Ireland customers only, subject to availability.
For more information, or details on the full range of Khatod products available from Anglia, please email info@anglia.com
