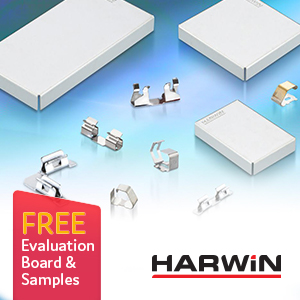

Harwin EMI shielding clips and cans simplify designs, samples and evaluation kit available from Anglia
Harwin have a wide range of Surface Mount Shield Clips and compatible Shield Cans which provide design engineers a straight-forward, easy-to-use board level shielding solution. The novel combination of separate surface mount (SMT) Clips and Shielding Cans provides a very simple, production friendly and cost-effective method of shielding components which are vulnerable to or radiate EMI.
Once the SMT clips have been soldered to the PCB using automatic SMD production equipment there is no secondary manual soldering operations required to assemble the shield cans, these are just quickly and easily slotted into the SMT clips. As well as being very production friendly and fast assembly this method also avoids introducing potential hot-spots from manual soldering, which could damage adjacent components. Rework and testing is also much easier without a de-soldering operation to access components under the shield can, the metal shield can simply be lifted off the board and replaced after the servicing has been performed.
A standard range of SMT clips are available made from Beryllium Copper, Cupro-Nickel (Beryllium-free) or Stainless Steel material all with a bright tin finish, SMT clips are available to suit the various can thicknesses and include corner mount versions. The shielding cans provides excellent RFI and EMI protection to sensitive circuitry at the PCB level and are constructed from un-plated nickel silver material and are available in 6 popular sizes to suit most application needs, the sizes range from 30 x 20 x 2.5mm to 50 x 25 x 5mm.
To support engineers at the design stage Harwin also have a RFI Shield Can Kit which consists of SMT clips and 2 sheets of 60 x 80mm shield can material which is scored on a 5mm pitch grid allowing users to configure custom sizes for testing, prototyping and evaluation purposes.
Key features
- Solderless connection of Shield Can to PCB
- SMT Shield clips on Tape & Reel
- Fast removal of Shield Can from PCB
- Simple 5-sided Shield Can style
- Shield Can Development Kit available
- Wide range of off-the-shelf models
Click here for more information or to buy from Anglia Live.
Click here to download the Harwin EMC Shielding Brochure
Anglia are offering customers a FREE evaluation kit and samples of the Surface Mount Shield Clips and Shield Cans from Harwin, please fill in the form below to register for your FREE samples now.
Requesting....
To register for a FREE evaluation kit and samples of the Surface Mount Shield Clips and Shield Cans from Harwin, please fill in the form below.
| First name | * |
| Last name | * |
| Company | * |
| Telephone | * |
| Email Address | * |
| Project Name | |
| Project Volume | * |
FREE samples for UK and Ireland customers only, subject to availability.
For more information, or details on the full range of Harwin products available from Anglia, please email info@anglia.com
