Hammond Electronics Launch the 1551V Series Sensor Enclosures for the IoT
The new 1551V miniature ventilated sensor enclosures from Hammond Electronics are designed to house sensors and small sub-systems installed in the manufacturing environment as part of IoT systems. The 1551V enclosures have been designed around the PCB sizes most commonly selected by leading sensor manufacturers for their latest generations of products.
The enclosures are constructed from robust ABS material, have UL94-HB flammability rating and are designed to meet IP30 ingress protection. The 1551V series is available in black, grey and white colours as standard and four different size options of 80 x 80, 80 x 40, 60 x 60 and 40 x 40mm all with 20mm height, maximum PCB sizes the enclosures can accept are 74 x 74, 74 x 34, 54 x 54 and 34 x 34mm respectively.
Four PCB mounts are moulded into the base of the enclosures and the 20mm height gives enough space for board-mounted RJ45, USB and other standard communication interface connectors to be fitted. To simplify access, the enclosures have a snap-fit closure mechanism which allows repeated opening and closing without tools. There are ventilation slots on all four vertical faces along with mounting slots and a 15mm cable knock out in the base to aid installation.

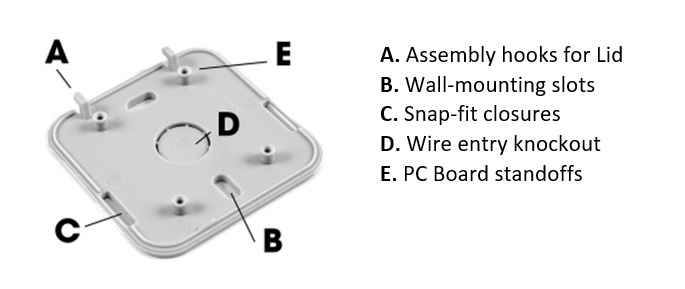

Enclosure base Features
Environmental sensors monitoring conditions such as temperature, humidity and pressure are widely installed in many applications, and are now increasingly part of an intelligent sub-system, with data processing and communications capability embedded on a small PCB. For active components that can produce relatively large amounts of waste heat, the ventilated design of the 1551V series provides excellent airflow for cooling purposes.
Click below to see a short introduction to the 1551V series from Hammond Electronics
Click here for more information or to buy from Anglia Live.
Click here to download datasheet for the 1551V1xx 40x40mm enclosures
Click here to download datasheet for the 1551V2xx 80x40mm enclosures
Click here to download datasheet for the 1551V3xx 60x60mm enclosures
Click here to download datasheet for the 1551V4xx 80x80mm enclosures
Anglia are offering customers FREE samples of the 1551V series miniature ventilated sensor enclosures from Hammond Electronics, please fill in the form below to register for your FREE samples now.
Requesting....
To register for free samples of the 1551V series miniature ventilated sensor enclosures from Hammond Electronics, please fill in the form below
| First name | * |
| Last name | * |
| Company | * |
| Telephone | * |
| Email Address | * |
| Project Name | |
| Project Volume | * |
FREE samples for UK and Ireland customers only, subject to availability.
For more information, or details on the full range of Hammond Manufacturing products available from Anglia, please email info@anglia.com
