Anglia introduces the HR25A Series, Miniature, High-Density, Durable Circular Connector with Push-pull Lock from HIROSE
Introducing the HR25A Series, Miniature, High-Density, Durable Circular Connector with Push-pull Lock from HIROSE
HIROSE Electric Co. Ltd, a world-class manufacturer in connectors has sustained the high industry requirements, with its miniature push-pull, small size, high-density circular connector the HR25A series.
The HR25A high-density circular connector was developed using HIROSE Electric's long experience with miniaturization technology as a connectivity solution for a wide variety of small electronic applications such as FA cameras, sensors, security cameras, medical and test equipment.

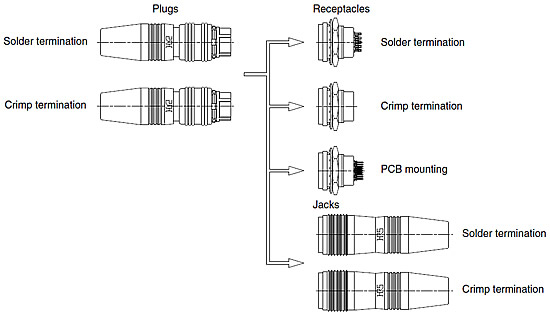

The HR25A series connectors features plugs, receptacles, and jacks. Plugs come in two sizes, shell size 11 for 4, 6 and 8 contacts, and shell size 13 for 12, 16 and 20 contacts.
The HR25A series has a user-friendly push-pull lock structure operation with a tactile click when secure locking is complete. The straight plug and jack from this series correspondingly includes a push-pull component that can easily be connected or disconnected due to the low withdrawal force. To prevent misconnection the connectors are polarized for correct insertion by a straight push in movement. A built-in lock release mechanism securely locks mated connectors while allowing for quick disconnection by simply pulling on the plug release collar.
Along with the push-pull mechanism, the HR25A series include metal shells that provide a secure lock that delivers excellent ground connection for applications requiring EMI protection. Different termination styles are also available such as crimp, solder and board mount for maximum design flexibility.
Key Features
- Number of contacts: 4, 6, 8, 12, 16, 20
- Shell size: 7mm, 9mm
- Current rating: 1A
- Voltage rating: AC30V, DC42V
- Contact plating: Gold
- Locking style: Push-pull
- RoHS Compliant
Click here for more information or to buy from Anglia Live.
Click here to download datasheet for HR25A series.
Anglia are offering customers FREE samples of the HR25A high-density circular connector with Push-pull Lock from HIROSE, please fill in the form below to register for your FREE samples now.
Requesting....
To register for FREE samples of the HR25A high-density circular connector with Push-pull Lock from HIROSE, please fill in the form below
| First name | * |
| Last name | * |
| Company | * |
| Telephone | * |
| Email Address | * |
| Project Name | |
| Project Volume | * |
FREE samples for UK and Ireland customers only, subject to availability.
For more information, or details on the full range of Hirose products available from Anglia, please email info@anglia.com
