Hirose DF52 Series offers Robust, Wire-to-Board, 0.8mm Pitch Connections, samples available from Anglia
Hirose has introduced the DF52 series to deliver a space-saving, robust, Wire-to-Board connectivity solution for applications requiring more strength and durability. The DF52 series is part of the HIROSE’s SignalBee product family which includes compact and high performance Wire-to-Board and Wire-to-Wire connectors that are designed for the requirements of industrial applications.
The DF52 connector range consists of crimp plugs and right angle receptacles in a single row. The mated height profile is minimised to 1.75mm and the depth to 4.1mm to reduce the space needed on the board.

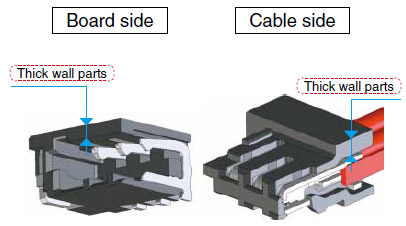

The housings have been designed with thicker and more robust walls to prevent breakage and resistance against mechanical stress during the cabling process. In addition, a higher cable pull force of approximately 20N (17 pos. vertical direction) can be achieved.
The crimp plug features a robust and reliable lance structure which keeps the contacts securely in place even when high forces are applied to the cable.
Highly reliable box shape crimp contacts are utilised to prevent deformation and provide strong resistance against breakage, snaring and rough operation.
The crimp plug has visible slits embedded into the housing structure to act as an indicator. When the slits are no longer visible this indicates the connectors are fully engaged guaranteeing complete electrical and mechanical connection and thus prevents incomplete mating.
The DF52 series are suitable for a wide range of applications such as wireless networks, drones, smart watch, embedded modules, smart home devices, IoT sensors, medical devices, smart meters, industrial robots and many others.
Key Features
- Contact positions: 2 - 20 (in most sizes)
- Contact pitch: 0.8mm
- Current rating: 2.5A (max)
- Voltage rating: AC/DC 100V
- Mating cycles: 20
- Cable size: AWG 28 - 32
- RoHS Compliant
- Halogen free (IEC61249 2 21)
- Glow wire compliant (IEC60695 2 11)
- Operating temperature range: -40 °C to +85 °C
Click here for more information or to buy from Anglia Live.
Click here to download datasheet for the DF52 series.
Anglia are offering customers FREE samples of the DF52 Series, 0.8mm Pitch, Robust, Wire-to-Board Connectors from Hirose, please fill in the form below to register for your FREE samples now.
Requesting....
To register for FREE samples of the DF52 Series, 0.8mm Pitch, Robust, Wire-to-Board Connectors from Hirose, please fill in the form below
| First name | * |
| Last name | * |
| Company | * |
| Telephone | * |
| Email Address | * |
| Project Name | |
| Project Volume | * |
FREE samples for UK and Ireland customers only, subject to availability.
For more information, or details on the full range of Hirose products available from Anglia, please email info@anglia.com
