Highly Integrated Power Quality Monitoring AFE from Analog Devices Saves Design Time and Cost, samples available from Anglia

Equipment in factories, hospitals, commercial buildings and other settings is often susceptible to service interruption, premature failure, and long-term damage caused by disturbances and variations in the power supply, known as pollution. In many cases, this pollution in the power supply can go undetected before damaging expensive equipment. The ADE9000 AFE enables designers of power quality monitoring solutions to measure and analyse pollution in order to prevent these disruptions and long-term damage, primarily for three-phase power meters.

The ADE9000 AFE integrates seven high-performance ADCs, a high-end reference, a flexible digital signal processing (DSP) core, and proprietary algorithms into a single convenient device. High accuracy is driven by the ADCs and reference which provide low drift over temperature and the highest accuracy over the widest dynamic range. Pre-programmed proprietary power quality software provide real-time monitoring and harmonic analysis, including magnitude and phase information. This enables timely and cost-saving corrective action when necessary.

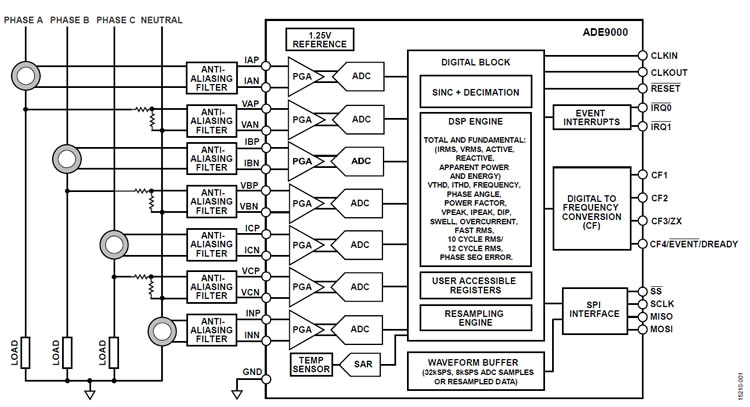

ADE9000 functional block diagram

For power system meter designers who do not require the advanced power quality features of the ADE9000, the ADE9078 energy metering AFE is available for polyphase utility grade meter applications.

Click here for more information or to buy from Anglia Live.

Click here to download the datasheet for the ADE9000 device.

Anglia are offering customers FREE samples and an evaluation board for the ADE9000 AFE from Analog Devices, please fill in the form below to register for your FREE samples and evaluation board now.
