Analog Devices have released the ADuCM302x series of ultra-low power microcontrollers designed to enable longer battery life and lower operating costs in IoT applications without sacrificing security and reliability functions.

Consuming 38uA/MHz of current in active mode and less than 750nA in standby mode, the ADuCM302x microcontrollers enable longer operation between battery replacements or recharging, providing a better end-user experience and lower maintenance cost. This efficiency can also reduce costs for device makers by decreasing the number and size of batteries required, and enables new applications where battery replacement is impractical. All of the Analog Devices ultralow power MCUs have the SensorStrobe™ capability that allow over 10x system power savings when using them with digital sensors such as the ADXL363. This is achieved by allowing the digital sensors to continue collecting information while the MCU is in a low power state.

While alternatives on the market often sacrifice key functionality to achieve efficiency benchmarks, the ADuCM302x series maintains a full suite of reliability and safety functions. Serving as the brain of a connected solution, these microcontrollers represent Analog Devices' focus on delivering system-level solutions for the Internet of Things, and enabling intelligent decision-making closer to the sensor. They complement ADI's broad portfolio of compatible sensing and wireless communication technologies, and will be supported by software and hardware development tools to help integrators optimize solutions for their unique application needs.

The ADuCM3027 and ADuCM3029 are the initial offerings in the series, differing only in flash memory (128K and 256k respectively). They outperform other general-purpose processors with a high ULPBench™ certified score of 245.5 points as established by the EEMBC (Embedded Microprocessor Benchmark Consortium), an independent industry alliance.

The 32-bit ARM® Cortex®-M3 processor is easily configured to achieve the right balance of performance and power while still offering critical security and reliability functions. Faster encryption enabled by a combination of hardware and software protection mechanisms provides read-protection to prevent the device contents from being read by unauthorized users. Additionally, in-circuit write-protection prevents the device from being reprogrammed with unauthorized code. Voltage monitoring in standby-mode and error correction for the flash memory increase reliability by avoiding corruptions which could result in misoperation or system crashes.

Key Features

• Single supply operation
• Up to 26 MHz ARM Cortex-M3 processor with MPU
• Up to 256K bytes of embedded flash memory with ECC
• Optional 4K cache for lower active power
• 64K bytes system SRAM with parity
• Integrated power management with optional buck converter for improved efficiency
• Automatic time stamping allowing sensor synchronization using Flex RTC

Click here for more information or to buy from Anglia Live.

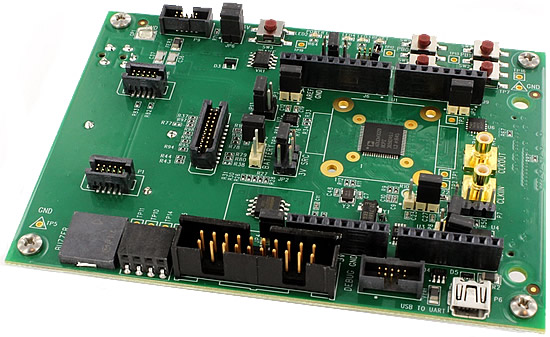

The ADuCM302x series is supported by the ADZS-UCM3029EZLITE evaluation board. Based on the ARM® Cortex® -M3 ADuCM3029 processor featuring a collection of digital peripherals, embedded SRAM and flash memory. The processor also contains an analog subsystem which provides clocking, reset and power management capability in addition to an ADC subsystem. The evaluation board ships with all of the necessary components required to start the evaluation immediately and is designed to be used in conjunction with the IAR Embedded Workbench® and Segger®development environment for advanced application code development and debug.

Anglia are offering a FREE evaluation board and samples of the ADuCM302x series ultra-low power microcontrollers from Analog Devices, please fill in the form below to register interest now.
