Available from Anglia the Analog Devices ADF7030 transceiver provides reliable radio connections and extended battery life
Analog Devices have introduced a low power, high performance, radio transceiver for battery powered applications. The new transceiver enables more reliable wireless radio connections with fewer retries and packet losses as well as longer battery lifetime.
The ADF7030-1 features a highly sensitive receiver and superior immunity to signal interferences as well as low power modes, including the industry's lowest current in sleep mode. Designed with ADI's advanced radio technology, the transceiver is ideal for users of Internet of Things (IoT) devices, smart metering, security and building automation, industrial control, and wireless sensor networks.
The new ADF7030-1 sub-GHz integrated radio transceiver supports narrowband and wideband operation across sub-GHz ISM bands and data rates from 0.1 kbps to 300 kbps using 2GFSK modulation. The radio transceiver also supports Wireless M-Bus (WMBUS) and IEEE 802.15.4g-based protocols. Offering excellent receiver sensitivity that maximizes link budgets and support for larger cell sizes with a high immunity to interference, the new transceiver also improves system reliability.
The ADF7030-1 transceiver features a smart wake mode that provides low overall power consumption enabling long lifetime in battery operated systems while maintaining excellent RF performance. The device can enter a low power sleep mode consuming only 10 nA with memory retained.
With an emphasis on flexibility and ease of use, the ADF7030-1 radio transceiver features an on-chip ARM® Cortex®-M0 radio processor that performs radio control and calibration, including time sequencing that reduces engineering development time. A highly programmable packet handler saves more valuable time by simplifying programming interfaces and code development on the host microprocessor. Comprehensive testing by ADI allows engineers to deploy network settings confidently without spending additional time optimizing settings to maximize performance.
The ADF7030-1 radio transceiver is supported by the ADF7030-1 EZ-KIT® evaluation and development system. Four EZ-KIT models are available for the ADF7030-1, covering various frequency ranges. Each ADF7030-1 EZ-KIT allows fast and thorough evaluation of the ADF7030-1 radio and provides a platform for host processor code development using the ADuCM3029 EZ-KIT mother board (ADZS-UCM3029EZLITE).

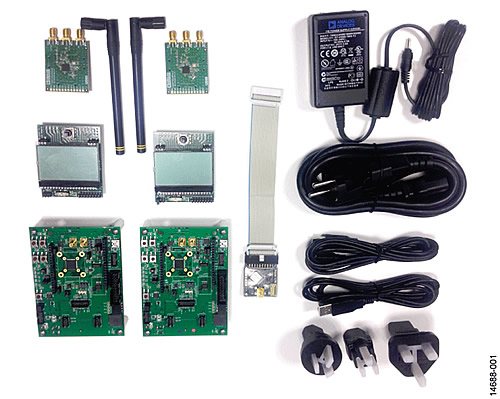

The ADF7030-1 EZ-KIT consists of the following:
- RF daughter boards.
- Antennae for over the air packet error rate testing.
- ADuCM3029 EZ-KIT mother board and LCD shield for evaluation and development with the ADF7030-1. The ADF7030-1 daughter boards plug into this mother board.
- ADF7030-1 Design Centre, a graphical user interface (GUI) for evaluation of the ADF7030-1. The GUI can be used for configuring the ADF7030-1, evaluating transmit and receive operation, and transmitting and receiving packets.
Click here for more information or to buy from Anglia Live.
Click here to download the datasheet.
Anglia are offering a FREE sample and Evaluation Kit for the ADF7030-1 sub-GHz integrated radio transceiver from Analog Devices, please fill in the form below to register interest now.
Requesting....
To register for a FREE sample and Evaluation Kit for the ADF7030-1 sub-GHz integrated radio transceiver from Analog Devices, please fill in the form below
| First name | * |
| Last name | * |
| Company | * |
| Telephone | * |
| Email Address | * |
| Project Name | |
| Project Volume | * |
FREE samples for UK and Ireland customers only, subject to availability.
