Panasonic introduces Soft-PGS Thermal Interface Material for extremely thin spaces
Panasonic have launched a highly-compressible Thermal Interface Material (TIM) which is used to reduce contact thermal resistance between rough surfaces in extremely thin spaces. Soft-PGS enhances the thermal coupling between heat producing devices (heat sources) and heat dissipation devices (the heat sinks).
Thermal Interface Material (TIM) is a key component in the majority of power electronic systems. Heat generated by semiconductors has to be transferred to a heat sink and ultimately dissipated. The Soft-PGS from Panasonic is a 200µm thick graphite sheet designed for use as a thermal interface material for IGBT modules. As Soft-PGS can be compressed by 40% it is an excellent method for dramatically reducing thermal resistance between a heat sink and an IGBT module.
Click on the video below to see a presentation on Soft-PGS material
The 200µm thick Soft-PGS sheet is easy to install, and has far lower labour and installation costs than thermal grease or phase change material. It is possible to achieve consistent and reliable performance using Soft-PGS especially compared with thermal paste products which can be messy and difficult to install due to variations in application thickness and they also degrade over time.

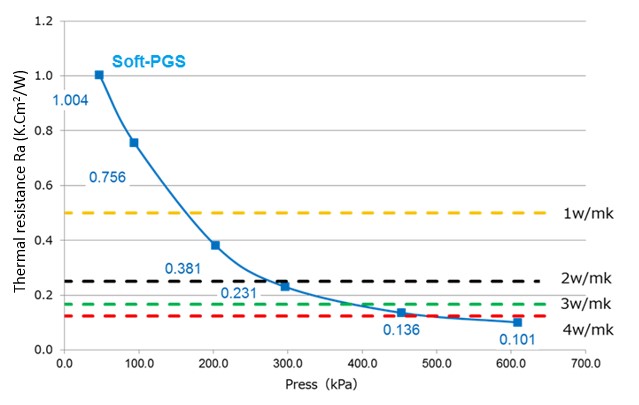

Soft-PGS thermal resistance comparison to grease with different thermal conductivities (Thickness 50µm)
Soft-PGS guarantees a thermo stability of up to 400°C and high reliability against intense heat cycles (-55°C to +150°C). Its thermal conductivity is guaranteed at 400W/mK for X-Y direction and at 30W/mK in Z direction.
The Panasonic Soft-PGS material is available in custom cut sizes to suit over 1600 IGBT module part numbers from various suppliers, in addition 3 standard sheet sizes are also available.

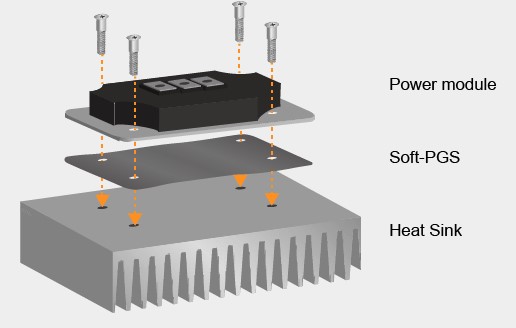

Typical installation use.
Click here for more information or to buy from Anglia Live.
Click here to download the datasheet
Anglia are offering customers a FREE sample of Soft-PGS Thermal Interface Material from Panasonic, please fill in the form below to register your interest now.
Requesting....
To request a FREE sample of the Soft-PGS Thermal Interface Material from Panasonic please fill in the form below
| First name | * |
| Last name | * |
| Company | * |
| Telephone | * |
| Email Address | * |
| Project Name | |
| Project Volume | * |
FREE samples for UK and Ireland customers only, subject to availability.
For more information, or details on the full range of Panasonic products available from Anglia, please email info@anglia.com
