Phoenix Contact introduces Industrial DIN Rail housing for Raspberry Pi.
The Raspberry Pi single board computer has just celebrated its 4th birthday and in its short life has reinvigorated the world of computing and, more specifically, computer programming for a new generation of school children, hobbyist and application engineers. It has been so successful it is now widely used as a tried and tested core ingredient for industrial IO systems providing a world of possibilities, without the need for expensive industrial controllers.
Of course this is great news. However the Raspberry Pi was not originally intended for industrial applications and as such is not packaged for the control cabinet or industrial environment.
Not, that is, until now. Phoenix Contact is a world leader in Device Connectors and Electronics Enclosures for industrial applications and has just launched an extension to its well established BC enclosure portfolio with the new RPI-BC which has been specifically designed for Raspberry Pi, you can watch a short video by clicking here.

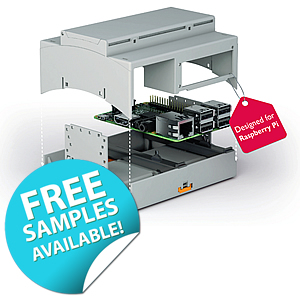

Unlike most enclosures for Raspberry Pi, the RPI-BC is a DIN rail or wall mountable enclosure that provides access to all the ports including the USB ports, GPIO pins and SD card without removing the lid. The enclosure can also be mounted adjacent to other modules on the DIN rail and still provide access to all ports.
And because the RPI-BC is part of the BC portfolio (watch video) of enclosures, expanding the system to add additional components is simple to achieve thanks to the integration of the DIN rail BUS connector and PTSM plugs and headers. The BUS connector provides high density connectivity to other BC modules mounted on the DIN rail. This turns the Raspberry Pi into the core of a truly integrated industrial solution. Click here to find out more about the BC series and other ranges of electronics enclosures from Phoenix Contact.
The RPI-BC enclosure incorporates catches for securing to the DIN rail, but the very same catches can be used to mount the enclosure directly onto the wall or other flat surfaces. The optional BUS connector is mounted directly on the DIN rail allowing individual BC modules to be plugged and unplugged from the BUS system without losing connectivity to other modules.
Power can simply and conveniently be provided with the efficient STEP 5V, 2A power supply (part # 2320513). Sharing the same form factor but at just 18mm wide, the STEP power supply can be mounted alongside the RPI-BC enclosure on the DIN rail and connected to the USB-micro connector with a short cable.
Internal space has been provided within the RPI-BC to allow users to add additional circuitry as required. Prototyping PCBs are available to order (part # 2202995 & 2202994) and connect directly to the GPIO pins of the Raspberry Pi and the enclosure’s optional BUS connector, and mount securely within the RPI-BC enclosure. The prototyping PCBs are aimed more towards the industrial than hobby markets as they provide more space for custom circuitry. PTSM headers (watch video) can be soldered directly to the GPIO expansion PCB enabling plug-in IO access from outside the enclosure (PTSM plugs).
As the Raspberry Pi becomes ubiquitous in industrial applications, the need to professionally enclose and integrate with other system components will naturally follow and the RPI-BC enclosure is the ideal solution. The RPI-BC enclosure is perfectly suited to stand alone applications, thanks to its wall mounting capability, or as part of a larger integrated control cabinet or distribution board solution.
Click here for more information or buy from Anglia Live.
Anglia are offering customers a FREE sample of the RPI-BC enclosure and the DIN Rail mounted STEP power supply from Phoenix Contact, this is everything required to mount and power a Raspberry Pi board on a DIN Rail. Please fill in the form below to register your interest now.
Requesting....
To register for a FREE sample of the RPI-BC enclosure and the DIN Rail mounted STEP PSU please fill in the form below
| First name | * |
| Last name | * |
| Company | * |
| Telephone | * |
| Email Address | * |
| Project Name | |
| Project Volume | * |
For more information, or details on the full range of Phoenix Contact products available from Anglia, please email info@anglia.com
