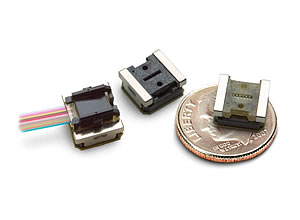

AFBR-78D13SZ MicroPOD 12x10G Receiver Module from Avago
The Avago AFBR-78D13SZ is a 12-channel pluggable, parallel fiber optics receiver module device that supports 12x10G bandwidth with OM3 link distance up to 300 meters. The AFBR-77D13SZ and AFBR-78D13SZ are a Tx/Rx module pair optimized for short-range parallel multi-lane data communication and interconnect applications. The high density optical modules are designed to operate over multimode fiber systems using a nominal wavelength of 850 nm.
Click here to read an complementary article about the AFBR-77D13SZ
The optical interface requires a user to provide a custom designed optical turn 1 x 12 ribbon cable PRIZM® LightTurn® connector.
Features
- Compliant to IEEE 802.3ba 100GbE (100GBASE-SR10 and nPPI) per lane and compatible with 10GBASE-SR
- Compliant to 12xQDR InfiniBand
- Operates at 10.3125 Gbps per channel with 64b/66b encoded data for 100GbE application and with 8b/10b for 10GbE applications.
- Supports 10 Gbps with 8b/10b for IB-QDR applications
- High aggregate bandwidth: 120 Gbps per module
- High density footprint: 7.8 x 8.2 x 3.9 mm3
- Separate transmitter and receiver modules
- 850nm VCSEL array in transmitter and PIN array in receiver
- 10.3125 Gbps links up to 300 m (400 m) with OM3 (OM4) 4700 MHz∙km 50 µm MMF
- Optical Interface: PRIZM® LightTurn® optical turn 1x12 ribbon fiber connector
- Electrical interface: 9x9 micro-LGA with 0.7424 mm pitch
- Low power consumption: 3.0 W max per Tx/Rx pair (0 °C to 70 °C operating range)
- Dedicated signals for module address, module reset and host interrupt
- Two Wire Serial (TWS) interface with maskable interrupt for expanded functionality including:
- Individual channel functions: disable, squelch disable, lane polarity inversion, TX eye margin enable
- A/D read back: module temperature and supply voltages, per channel laser current and laser power, or received power
- Status: per channel Tx fault, electrical (transmitter) or optical (receiver) LOS, and alarm flags
- Programmable equalization integrated with DC blocking caps at transmitter data input
- Programmable receiver output swing and de-emphasis level
- Field-upgradable firmware capability
- 0 °C to 70 °C case temperature continuous operating range (85 °C supported for short durations)
Applications
- 100GbE, 10GbE and IB-QDR/ IB-DDR/ IB-SDR interconnects
- Data Aggregation, Backplane and Proprietary Protocol and Density Applications
- High Performance and High Productivity Computer Interconnects
- Switch Fabric Interconnects
