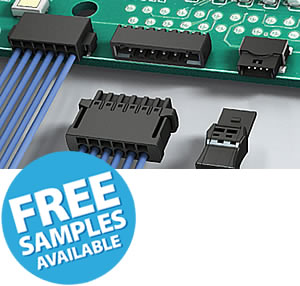

Introducing the har-flexicon® connector system from HARTING
The HARTING har-flexicon® product family has been designed to address this trend, offering screwless connection of single wires and compatibility with reflow soldering processes as well as with automatic loading systems using pick-and-place technology ensures efficient processing for both the device production and the device installation.
The HARTING har-flexicon® is the ideal miniature SMD connector for the rapid connection of single wires and provides a perfect connection between PCBs in industrial devices.
The HARTING har-flexicon® product family is available in 1.27mm, 2.54mm, 3.50mm, 3.81mm, 5.00mm and 5.08mm pitch and utilises a screwless wire termination system across all pitches with the added option of screw connection on the 3.50mm and larger pitch sizes. The har-flexicon® product family has been designed for easy assembly during production and also for rapid and easy use during field assembly.
The connectors are available from 2 ways up to 25 ways depending on the series and the 1.27mm and 2.54mm SMD PCB connectors feature additional SMD fixings on the sides to improve robustness.
HARTING har-flexicon® Features
- PCB terminal blocks and PCB connectors in 1.27 mm, 2.54 mm, 3.50/3.81 mm and 5.00/5.08 mm pitch
- Rapid, tool-less connection of single wires with Insulation Displacement Connection (IDC), push-in-spring-cage connection or screw connection.
- High packaging density in pitches 1.27 mm and 2.54 mm
- High level of rigidity on the PCB with side, large-area SMD fixings on 1.27mm and 2.54mm pitch
- Low processing costs
The HARTING har-flexicon® product family is suitable for use in a wide range of applications including Portable Handheld Devices, Industrial Equipment, Instrumentation and Fire & Security Panels to name just a few.
Click here to download the HARTING har-flexicon® overview brochure
Anglia are offering customers FREE samples of the HARTING har-flexicon® connector system, please fill in the form below to request yours now.
Requesting....
For a FREE HARTING har-flexicon connector system sample please fill in the form below
| First name | * |
| Last name | * |
| Company | * |
| Telephone | * |
| Email Address | * |
| Project Name | |
| Project Volume | * |
For more information, or details on the full range of Harting products available from Anglia, please email info@anglia.com
