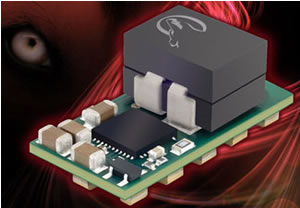

MurataPS indroduces 35A power block DC-DC converter module for FPGA and embedded applications
This Power Block concept sits between a discrete Point-of-Load (PoL) design and that of a complete non-isolated buck converter module. Essentially a non-isolated buck converter without the PWM controller, the OKLP-X/35-W12-C power block measures 25.4 x 12.7 x 11.1 mm and has a typical efficiency rating of 94%. Input voltage is a nominal 12 VDC and can accommodate the range of 7 to 13.2 VDC.
The Power Block design approach allows the power engineer to achieve the highest efficiency and maximum possible power and current density while maintaining a high performance system at a lower cost when compared to a complete module design approach. The Power Block provides a single-package solution that incorporates all of the power handling components, fully tested and characterized for thermal and dynamic performance. The Power Block design approach is ideal for today's power-hungry FPGAs, ASICs, computing, and IBA architectures. Most analog or digital PWM controllers can be used with the Power Block; however, the maximum benefits are achieved when coupled with ZMDI's ZSPM1035 single-phase digital PWM IC controller family.
The combination of ZMDI's ZSPM1035 and the 35A Power Block provides a ready, tested, and optimally preconfigured 35A point-of-load solution. Designers have access to a full downloadable construction kit that includes step-by-step instructions and a software wizard. ZMDI's Pink Power Designer™ GUI allows fast module configuration that speeds time-to-market. The digital control loop provides ultra-fast transient response, steady-state performance, stability, and design flexibility. Up to four different output capacitor ranges can be supported by selecting the preconfigured ZMDI controller.
Click here to view the datasheet
For more information, or details on the full range of Murata products available from Anglia, please email info@anglia.com
