Analog Devices nanoDAC+ converters expand industry's best D/A converter performance in the smallest package

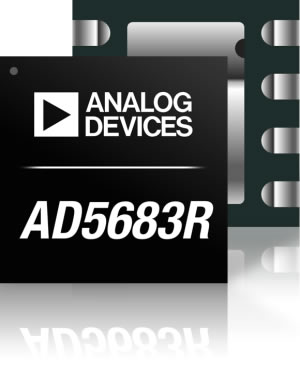

Analog Devices has introduced the AD5683R D/A converter. This16-bit single nanoDAC+ continues the series of ADIs nanoDAC® products offering high performance in smaller packages. Offering value without compromise with relative accuracy of ±2-LSB INL, 2-ppm/°C 2.5-V reference, and space saving packages, this combination allows analog designers to address a wider range of applications without having to trade accuracy for footprint.
With 16, 14, 12 and 10-Bit options available, The AD5683R D/A converter provides a versatile pin-compatible upgrade/downgrade path for performance in a wide range of markets including communications infrastructure, industrial process control, healthcare and instrumentation.
- Download AD5683R data sheet, order samples and evaluation boards.
- Find latest information on nanoDAC solutions from ADI
AD5683R 16-bit nanoDAC+ Key Features:
- ±2 LSB-INL max - suits open loop applications
- 2-ppm/°C 2.5-V reference – saves board space and removes calibration requirements over temperature
- Total Unadjusted Error 2-mV - eliminates need for initial calibration/adjustment
- 2-mm × 2-mm 8-lead LFCSP and 10-lead MSOP – allowing more functionality within shrinking board/module sizes
- 4-KV HBM ESD rating - provides system robustness
- I2C versions available soon
Availability
| Product | Sample Availability/Full Production | Resolution | Integrated Reference | Interface | Packaging |
|---|---|---|---|---|---|
| AD5683R | NOW | 16-bit | Yes | SPI | 8-lead LFCSP, 10-lead MSOP |
| AD5683 | NOW | 16-bit | No | SPI | 8-lead LFCSP |
| AD5682R | NOW | 14-bit | Yes | SPI | 8-lead LFCSP |
| AD5681R | NOW | 12-bit | Yes | SPI | 8-lead LFCSP, 10-lead MSOP |
| AD5310R | NOW | 10-bit | Yes | SPI | 10-lead MSOP |
The AD5683R can be designed into circuits for PLC, I/O cards applications with ADI’s AD5750-2 which is a single-channel, low cost, precision voltage/current output driver amplifier.
For more information, or details on the full range of Analog Devices products available from Anglia, please email info@anglia.com
