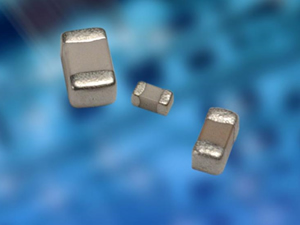

AVX adds new capacitance values and voltage ratings to its range of C0G (NP0) MLCCs
AVX has expanded its range of high reliability C0G (NP0) dielectric multilayer ceramic capacitors (MLCCs). Available in case sizes spanning 01005 to 2225, voltages up to 500V, and capacitance tolerances as low as ±0.1pF, AVX’s C0G (NP0) MLCCs provide one of the most stable capacitor dielectrics available in today’s market, making them ideal for resonant circuit applications requiring superior stability or a precise temperature coefficient, such as: matching circuits, handheld devices, and GPS, among others.
New values range from 3.3nF in 0603 to 10nF in the 0805 size. Additionally, a new 200V product up to 100pF is also now available in 0603.
The most popular formation of the temperature-compensating EIA Class I ceramic materials, modern C0G (NP0) formulations exhibit the lowest losses and most stable voltage and temperature characteristics of any ceramic capacitor application class. Additionally, C0G (NP0) formulations do not exhibit any aging characteristics.
“Expanding our range of C0G (NP0) MLCCs to include a broader range of case sizes, voltage ratings, and capacitance ratings significantly expands the number of applications that can benefit from the superior stability, loss, and temperature characteristics that the dielectric provides,” said Mark Obuszewski, business manager at AVX.
Operating temperatures for AVX’s C0G/NP0 MLCCs span -55°C to +125°C, and capacitance change with temperature is 0 ±30ppm/°C, which is less than ±0.3% ΔC. Capacitance drift for C0G (NP0) MLCCs is negligible at less than ±0.05%, versus up to ±2% for films. Additionally, typical capacitance change with life is less than ±0.1%, or less than one-fifth that exhibited by most other dielectrics.
Available terminations for the newly expanded range of C0G (NP0) MLCCs include: plated Ni/Sn, plated Au, and, upon factory request for certain part numbers, plated Pd/Ag. Additional tolerance options and non-specified capacitance values may also be available upon request and typical lead-time is eight to ten weeks.
Click here to download the datasheet. or click here to view the range of AVX MLCC's on Anglia Live
For more information, or details on the full range of AVX products available from Anglia, please email info@anglia.com
