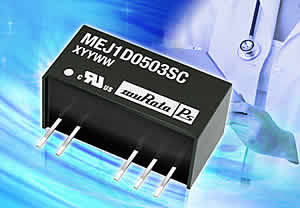

Compact 1 Watt DC-DC converter from MurataPS complies with UL60601-1 for medical safety

The MEJ1 is a series of isolated 1 Watt DC-DC converters encapsulated in a 7 pin SIP package. The series offers basic and supplementary isolation to the internationally recognized UL60950 standard. The converter is certified to a continuous working voltage of 200 Vrms when operating in a maximum ambient temperature of +85°C.

Input to output isolation is rated at 5,200 VDC for 1 second and also complies with the 3rd edition of medical safety standard UL60601-1.

Product Features
•Good efficiency across the full load range
•Pin compatible upgrade path from the MEV1 and NMV series
•Safety approval UL60950 & UL60601-1

Model Number	Input Voltage	Output Voltage	Efficiency
MEJ1S0303SC	3.3V	3.3V	70%
MEJ1S0305SC	3.3V	5V	71.5%
MEJ1S0503SC	5V	3.3V	69%
MEJ1S0505SC	5V	5V	72%
MEJ1S0509SC	5V	9V	74%
MEJ1S0512SC	5V	12V	74%
MEJ1S0515SC	5V	15V	75%
MEJ1S1203SC	12V	3.3V	72%
MEJ1S1205SC	12V	5V	74.5%
MEJ1S1209SC	12V	9V	76.5%
MEJ1S1212SC	12V	12V	76.5%
MEJ1S1215SC	12V	15V	77%
MEJ1S1505SC	15V	5V	74%
MEJ1S1509SC	15V	9V	76%
MEJ1S1512SC	15V	12V	76.5%
MEJ1S1515SC	15V	15V	76.5%
MEJ1S2405SC	24V	5V	75%
MEJ1S2409SC	24V	9V	77%
MEJ1S2412SC	24V	12V	78%
MEJ1S2415SC	24V	15V	78%
MEJ1D0503SC	5V	+/-3.3V	70%
MEJ1D0505SC	5V	+/-5V	72%
MEJ1D0509SC	5V	+/-9V	74%
MEJ1D0512SC	5V	+/-12V	74.5%
MEJ1D0515SC	5V	+/-15V	75.5%
MEJ1D1203SC	12V	+/-3.3V	73%
MEJ1D1205SC	12V	+/-5V	75.5%
MEJ1D1209SC	12V	+/-9V	77%
MEJ1D1212SC	12V	+/-12V	76.5%
MEJ1D1215SC	12V	+/-15V	77%
MEJ1D1505SC	15V	+/-5V	75%
MEJ1D1509SC	15V	+/-9V	76.5%
MEJ1D1512SC	15V	+/-12V	77%
MEJ1D1515SC	15V	+/-15V	76.5%
MEJ1D2405SC	24V	+/-5V	76.5%
MEJ1D2409SC	24V	+/-9V	78%
MEJ1D2412SC	24V	+/-12V	78%
MEJ1D2415SC	24V	+/-15V	78.5%
