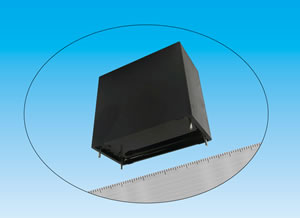

Panasonic release new Film Cap series for DC-link and DC filter applications

The market requirements for high voltage capacitors in industrial applications, especially for DC-link, DC filtering and snubber capacitors are high reliability and long life in a compact case size.

With the EZPE series Panasonic developed a series that is supporting with advanced technologies these requirements. It is an ideal alternative for electrolytic capacitor as of improved energy efficiency, higher voltage and ripple current level and design flexibility.

Panasonic EZPE series is produced with metallized Polypropylene film and a patterned metallization technology (100% Panasonic black box technology). The special fuse function of the patterned metallization enables high capacitance, high withstand voltage and a built-in protection function.

Features & Benefits
Long product life & high reliability
High safety function (self-healing and built-in self-protection)
Low ESR & low loss
Low heat generation
Strong against electromagnetic interference
Flame retardant (case and sealing are UL94V-0 qualified)
Compact size

Technical Details:
Rated voltage                                              800VDC/1100VDC* (further values under development)
Capacitance range                                     10uF to 60uF (further values under development)
Capacitance tolerance                               ± 10%
Temperature range                                     -40°C to +85°C
Typical ESR (20°C/ 10kHz)                         5.6mΩ to 15.8mΩ
Permissible RMS current (70°C/10kHz)    7Arms to 17Arms**

* 700VDC/920VDC at 85°C, please refer to "DC voltage derating at more than 70°C” in the data sheet
** for permissible peak current Ao-p please refer to datasheet

Application examples
DC link
DC filtering
IGBT protection / Snubber capacitor
Photovoltaic inverter
Wind power generation
Industrial power supplies
Inverter circuit for appliances

Documents:
www.industrial.panasonic.com/eu
http://industrial.panasonic.com/www-data/pdf/ABD0000/ABD0000CE51.pdf

For more information, or details on the full range of Panasonic products available from Anglia, please email info@anglia.com
