PCB terminal block from Phoenix Contact provides tool-free connection up to 76A

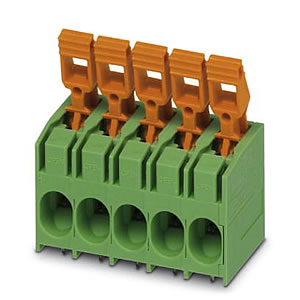

The PLH16 terminal block from Phoenix Contact enables fast, tool-free connection thanks to its push-lock spring-cage termination method.
The push-lock spring of the block easily accommodates conductors with or without ferrules by means of the one-hand tilting lever principle. Simply insert the solid or stranded conductor in the open terminal point and connect it securely by actuating the tilting lever via the push-lock spring. Alternatively, conductors can also be inserted directly when the lever is closed by means of the push-in method.
Suitable for conductor cross sections up to 16mm², the PLH16 has a current carrying capacity of up to 76 A.
The range offers several pin configurations including 10mm pitch zig-zag pinning for unlimited 600 V UL approval.
Key Features:
• PCB terminal blocks with conductor cross-section up to 16 mm²
• Rated current up to 76 A
• Rated voltage up to 1000 V (IEC) and 600 V (UL)
• 10 mm and 15 mm pitch
• Horizontal conductor connection to the PCB
For more information, or details on the full range of Phoenix Contact products available from Anglia, please email info@anglia.com
