Bourns releases new gas discharge tube model

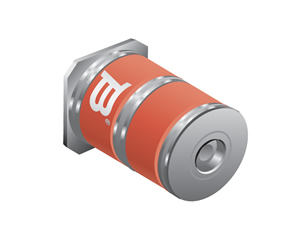

Bourns has announced the release of the Model 2030 T-Series fast response Gas Discharge Tubes (GDTs) designed for use with the Bourns® TBU® High Speed Protectors (HSPs).
The 2030 T-Series is a three element GDT that provides superior protection against fast rising voltage transients. GDTs on the market today commonly specify their impulse limiting performance at a 1k v/μs rate of rise. The T-series specifi es its impulse limiting performance at a very fast 5 kV, 1.2 x 50 μs making it ideally suited for use with the TBU® HSP.
The 2030 T-Series and TBU® HSP provide a superior protection solution for a broad number of industrial applications as well as telecom applications requiring GR-1089 or ITU-T K.21 compliance.
These GDT devices provide coordinated overvoltage protection for the specifi ed TBU® HSP protector models shown in the above table. Together, the GDT and TBU® High-Speed Protectors provide extremely fast overcurrent protection (OCP) and overvoltage protection (OVP) against electrical transients. When exposed to a transient event, the TBU® HSP will transition into a currentblocking condition in less than one microsecond at the rated current. When needed, the GDT will transition into conduction at a voltage below its maximum impulse rating, protecting the TBU® HSP from overvoltage and shunting the excess surge energy to ground. Once the transient subsides, the GDT and TBU® HSP will reset to their normal off-state modes of operation.
The new models are available as RoHS compliant.
Click here to download the datasheet.
For more information, or details on the full range of Bourns products available from Anglia, please email info@anglia.com
Delicious
Digg
Reddit
Facebook
StumbleUpon
Google
Newsvine
Yahoo
This news article was originally published in July 2012.
