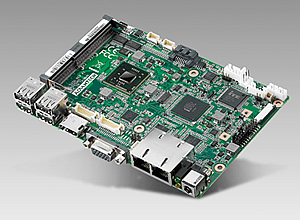

Advantech's new MI/O-Compact SBC MIO-5250 is powered by Intel Atom ultra low-power dual core processor



Advantech has announced the release of the MI/O (Multiple I/O) Extension Single Board Computer MIO-5250. MIO-5250 is designed with the MI/O Extension form factor (146 x 102 mm) and powered by Intel® Atom™ dual core processor. MIO-5250 not only features an ultra low-power processor and rich I/O capability but is also equipped with flexible multiple I/O expansion, which helps deliver faster time-to-market using less development resources. These features can help system integrators develop market-sensitive flexible solutions.

MI/O Extension: Extensible Platform for Efficient Development

Advantech’s innovative MI/O Extension form factor with integrated multiple I/O helps system integrators to provide optimised solutions in a more cost-effective way. With this new design, MI/O Extension SBCs incorporate the MIOe unified extended interface connector that integrates: DisplayPort, PCIe x1, LPC, SMBus, USB 2.0/USB 3.0, audio line-out and power. Customers receive the best current I/O choices to meet their vertical application development needs, as well as helping them retain their specialist domain knowhow. The MI/O Extension spec also unified screw mounting holes to make it easier for system maintenance and platform upgrades, and concentrated thermal design on the top-side via a heat sink/spreader to prevent thermal problems, plus reduced cabling to cut down on assembly efforts. MIO-5250 takes advantage of MI/O Extension by saving up to 20% of system space as well as providing flexibility for future I/O expansion and upgrades.

Ultra Low Power & Rugged Design

MIO-5250 is powered by Intel® Atom™ N2600 1.6GHz/ D2700 2.13GHz dual core processors with NM10, DDR3 up to 4 GB. Although MIO-5250 only supports dual core processors, it still delivers ultra low-power consumption. The TDP on MIO-5250 is between 7.3 ~ 10.7 Watts. The fanless design also makes MIO-5250 more reliable, and gives it a longer MTBF without dust or noise issues. Advantech’s MIO-5250 is a rugged design using specially selected components, such as 100% solid capacitors with better MTBF and better stability compared with electrolytic capacitors. It has a wide-temperature design and uses a TG-150 hi-temp PCB. MIO-5250 is super reliable and can endure extreme environments.

Multiple Display Type Solution

MIO-5250 features multiple display types such as: 18/24-bit LVDS1, 48-bit LVDS2, HDMI and VGA display capability. The graphic engine has DirectX 9, H/W format decode/ Acceleration, MPEG2 (H/W acceleration), H.264/ VC1/ WMV9 (H/W Decode/Acceleration).

  1. 18/24-bit LVDS1: up to 1366 x 768 (for N2600), 1440 x 900 (for D2700)
  2. 48-bit LVDS2: up to 1600x1200 (for N2600), 2560 x 1600 (for D2700)
  3. VGA: up to 1920 x 1200
  4. HDMI: supports 1920 x 1200, Max data rate: up to 1.65 Gb/s, supports HDMI v1.3 up to 1080p

MIO-5250 supports all these different display types, and it’s also possible to support additional display types through MIOe expansion.

iManager & SUSIAccess: Facilitating Applications with Embedded Software

MIO-5250 comes with value-added software services like iManager & SUSIAccess. iManager is an intelligent self-management cross platform tool that monitors system status for problems and reacts to take action if something is abnormal. iManager offers a boot up guarantee in critical, low temperature environments so systems can automatically recover when voltages dip. iManager makes the whole system more reliable and more intelligent. In addition, MIO-5250 supports Advantech’s own SUSIAccess which provides easy remote management so users can monitor, configure, and control a large number of terminals to make maintenance and system recovery simpler.

MI/O Extension SBC MIO-5250

  1. MI/O-Compact series: 146 x 102 mm (5.7" x 4")
  2. Intel® N2600 1.6G/ D2700 2.13G dual core processors + NM10, DDR3 1066MHz up to 4 GB
  3. DirectX 9, MPEG2 H/W acceleration, H.264/ VC1/ WMV9 (H/W Decode/Acceleration)
  4. Multiple displays: 24-bit LVDS1, 48-bit LVDS2, VGA, HDMI
  5. 2 x Intel® 82583V Gigabit Ethernet
  6. HD Audio (amplifier can be supported from MIOe interface)
  7. 4 COMs: 2 x RS-232 + 2 x RS-232/422/485
  8. 6 x USB2.0/ SATAII/ 8-bit GPIO/ SMBUS
  9. mSATA: supports either miniPCIe expansion or mSATA
  10. CFast: supports CFast via Serial ATA bus and speed is almost 4.5 times CompactFlash(PATA bus)
  11. Full size MiniPCIe + SIMholder: SIM holder supports cellular modules too
  12. iManager technology
  13. Extended MIOe interfaces: DisplayPort, PCIe x 1, LPC, SMBus, USB 2.0, audio line-out
  14. OS: Win7 , WinXP, WinXPe, WinCE, Linux support
  15. Thermal solutions: all have low profile fanless designs, and an optional heat spreader solution for bundling which makes the whole system more compact



For more information, or details on the full range of Advantech products available from Anglia, please email info@anglia.com

Back to product news

This news article was originally published in March 2012.
