Titan Opto introduces their latest PCB Indicator LEDs

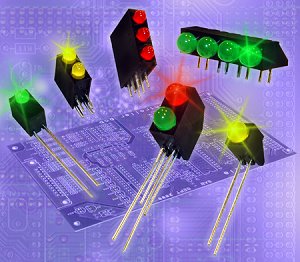

LED manufacturer Titan Opto, has launched a cost effective range of 3mm and 5mm, right angle, PCB mounting LEDs. Designed to be rugged, these circuit board indicators are housed in black mouldings manufactured from Nylon 6/6 which conforms to UL94V-2 flammability ratings.

The housing ensures correct LED alignment and protection against shock and vibration. The range is made up of diffused red, high bright red (luminous intensity typically 100mcd @ 20mA for the 5mm version), yellow and green LEDs or a combination of these colours in single, bi-level, tri-level and quad formats.

These devices are ideal for mounting onto the edges of PC boards to provide logic status indication, or binary display information. The footprint layout and physical dimensions have been carefully selected to allow them to be used for "design-in" applications and as a substitution product where cost savings are needed.

For more details about this range and a wide selection of other discrete and surface mount LEDs available from Anglia, please call +44 (0)1945 474747 or email info@anglia.com

Click on this link to go to the main Titan Opto section where you can view other news articles and product data.

back to product news

This article was originally published in March 2002
