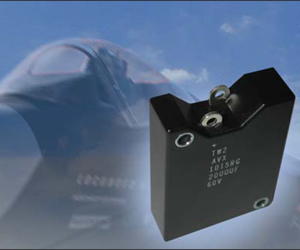

Wet electrolytic tantalum modules from AVX save board space, provide high capacitance and high voltage ratings

AVX has developed a wet electrolytic tantalum module that provides high capacitance values of up to 6,600uf at 25 volts, and up to 450uf at 125 rated volts, while saving board space.

Developed using several of AVX’s TWA Wet Tantalum capacitors which contain a patented high capacitance cathode system that enables high CV designs beyond the values specified in the Mil-PRF-39006 drawing, the TWM Series wet electrolytic tantalum module is manufactured and tested to the 93026 specification, and withstands the harsh shock and vibration requirements of M39006.

The TWM Series wet electrolytic tantalum module is ideal for output filtering, battery holdup, and energy storage and delivery in harsh environment applications. The TWM features an operating temperature range of -55°C to +125°C.

“The ultra reliable TWM Series wet electrolytic tantalum module provides new levels of capacitance and voltages unachievable with previous technologies,” said Jonathan Bourne, AVX technical marketing manager.

The TWM Series modules are available in a wide range of capacitance and voltage. TWM Series modules include 93026 case sizes T3 (D case, up to 100uf in 125VDC) through T4 (E case up to 150uf in 125VDC). AVX also offers customized capacitance and voltage packages.

Click here to view the datasheet

For more information, or details on the full range of AVX products available from Anglia, please call +44 (0)1945 474747 or email info@anglia.com

Alternatively, click on this link to go to the main AVX section where you can view other news articles and product data.
