Connectivity gateway demo board from STMicroelectronics based on STM32F107

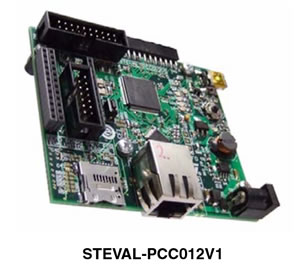

The STEVAL-PCC012V1 Kit from STMicroelectronics is a universal STM32F107 based Board for embedded control applications including Wired and wireless Communication, Audio (Streaming, Record and Play), MEMS based Sensors support and Data Storage.

It provides the following features:

• Fast Ethernet, USB OTG and general-purpose extension connectors
• Connector for external Wi-Fi modules
• MicroSD™ card socket
• Extension connector compatible with MEMS extension boards of the STEVAL-MKI0xxV1 series
• Pluggable STEVAL-CCA021V1 Audio Extension Board included
• Connector compatible with ST7590 PLC “PRIME Board”
• JTAG interface
• DC/DC power supply powered by L7986A
• Stand-alone demonstration firmware using on board LEDs and joystick
• Embedded Webserver (IwIP TCP/IP software stack)
• ROHS compliant

For any further information on this demonstration board, please submit your request to your contact person at STMicroelectronics

Click here to view the datasheet
