Sixteenth-brick DC/DC converter from MurataPS combines high power and efficiency for space-constrained designs

MurataPS MEV1 series expands with the introduction of 15V, 24V and 48V input versions

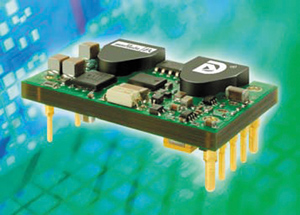

ULS Series:

The ULS is a new range of isolated DC/DC converters that provide up to 66 Watts of output power and full 2250VDC isolation from a 'sixteenth-brick' package. The DOSA compliant ULS series represents the latest in small footprint DC/DC converter design and provides an ideal space-saving solution for high current designs in telecom and datacom applications.

Features

Up to 66W output power from space-saving 'sixteenth-brick' package
2250VDC basic input/output isolation
High efficiency allowing fanless operation
Wide 36-75VDC input range

Specification

Models	Output		Power (W)	Nom. Input	Typ. Efficiency %
Models	Voltage (V)	Current (mA)	Power (W)	Voltage (V)	Typ. Efficiency %
ULS-3.3/20-D48N-C	3.3	20	66	48	90
ULS-5/12-D48N-C	5	12	60	48	90
ULS-12/5-D48N-C	12	5	60	48	91
