STMicroelectronics releases vibration analysis demonstration board based on the STM8S207R6 MCU and LIS331DLH MEMS

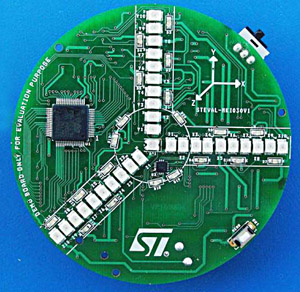

The vibration analysis board, STEVAL-MKI030V1 (termed 'the system'), is a demonstration board which detects the vibration of the board and measures the acceleration in all three axis (X, Y and Z). This information is displayed using different colour LEDs placed in the three axis.

Furthermore, the system can detect the tilt of the board, using a bi-colour LED placed at the centre of the board, and the circular motion by generating LED patterns. The system is also provided with a demonstration mode, in which different LED patterns can be displayed irrespective of the position/motion of the board making the system suitable for exhibitions and seminars.

There are three musical modes in which the music/rhythm is played as per the mode/motion of the board and there are three silent modes making a total of six different modes of operation of the system. The system can be switched from one mode to other by pressing an onboard push button designated MODE.

The system is put on the standby whenever there is no motion of the board for more than 10 seconds, reducing the power consumption. The system wakes up from standby whenever any vibration/motion is detected. The system also monitors the battery, and the user can check the battery status at any time. Whenever a low battery is detected, the system alerts the user to change the battery and enters into halt mode to avoid any misbehaviour of the system.

The board has free MCU I/Os for the external interface and a SWIM connector providing an in-circuit debugging capability.

Circular in shape, the board has total dimensions of 84mm diameter and 26mm height.

Key Features

Detection of vibration of the board using LEDs
Detection of circular motion of the board
Detection of tilt of the board
Six different modes of operation
Music/rhythm patterns as per the mode and motion of the board
Low power consumption along with automatic standby
Battery monitoring and display of the battery status
Powered by 3 AAA batteries
Free MCU I/Os for future extensions
SWIM connector for debugging
RoHS compliant
