Schurter presents the most compact power entry modules for safe power input offering maximum functionality within minimal dimensions

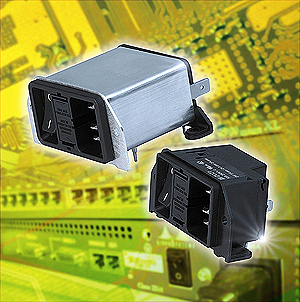

The latest power entry modules, series DD11 and DD12, from Schurter are extremely compact and robustly designed. The excellent performance makes them suitable for nearly any application using detachable power.

The DD11 is equipped with multiple functions including an appliance connector, switch and fuseholder. The DD12 combines the same functions and additionally includes a line filter.

The compact design makes the series ideally suited for the use in equipment with limited space and more demanding electrical and mechanical requirements. Areas of applications include IT and telecom, particularly one rack unit (1RU) enclosures, as well as medical, office, household appliances and automation.

The series mounts to the panel with screws. The filtered version has a broad metal flange, ensuring optimal contact to the appliance chassis for ideal shielding and filtering. Special filters with enhanced voltage withstand are available on request.

ENEC and cURus approved, the series complies with IEC/EN standards for office and medical equipment, 60950 and 60601-1 respectively.

Technical Features:
- Appliance inlet IEC C14, with IEC C18 on request
- Fuseholder 1- or 2-pole for 5x20 mm fuses
- Switch non-illuminated or illuminated, 2-pole, max. inrush current 100 A capacitive for 3 ms
- Current rating: ENEC 10 A, cURus 8A
- Filter as standard or medical version
