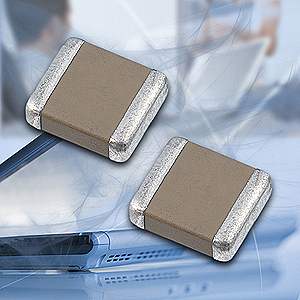

Increased capacitance and lower cost for Murata's X2-class safety capacitors

Certified to international safety standard IEC60384-14, the GB series are the first monolithic capacitors aimed at power supply primary circuit applications to achieve 56nF capacitance. The cost was also reduced by 15% over previous models by replacing the precious metals like silver that were used for the electrodes with a base metal such as nickel.

The GB series of X2-class safety capacitors has acquired certification to international capacitor safety standard IEC60384-14 and can resist electrical surges of up to 2500V. The series offers a volume reduction of up to 90% when replacing the typical choice of film capacitors for EMI reduction in power supply primary circuits, and use just 1/3 of the footprint. The significant volume reduction makes the product ideal for small and low profile equipment such as adaptors for laptop and notebook computers.

The GB series comes in 10, 15, 22,  33, 47 and 56nF versions measuring 5.7 x 5.0 mm, with a low profile between 1.0 and 2.9mm, depending on capacitance.

For more information, or details on the full range of Murata products available from Anglia, please call +44 (0)1945 474747 or email info@anglia.com

Alternatively, click on this link to go to the main Murata section where you can view other news articles and product data.
