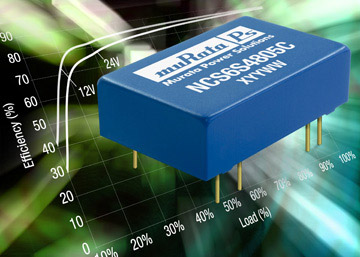

Wide input voltage range and industry standard footprint simplify design-in of MurataPS 6W single output DC/DC Converters
|
Murata Power Solutions have introduced a new range of isolated 6W, wide 4:1 input, single output DC/DC converters, the NCS6 series, suited for use in a variety of applications including telecommunications, battery powered systems, process control and distributed power systems. |
|
The NCS6 series offers single output voltages of 3.3V to 15V from input voltage ranges of 9-36V or 18-75V, and are housed in an industry standard package with a standard pin-out. Enclosed in a metal case for improved EMI shielding, the NCS6 is also encapsulated for superior thermal performance.
FEATURES
- 4:1 wide input voltage range (either 12V or 48V nominal)
- Output voltages of 3.3V, 5V, 12V or 15V
- Output currents from 0.4A to 1.52A
- 0.06% typical load regulation
- Typical efficiency levels from 75% to 87%
- High power density of 0.94W/cm3
- Low noise
- Under voltage lock out
- Current fold back
- No electrolytic capacitors
- 1.5kVDC isolation
- Operating temperature range –40°C to 85°C
- Metal case and encapsulated design support
- excellent thermal and EMI performance
- UL94V-0 package materials
Click here to download a datasheet.
For more information, or details on the full range of MurataPS products available from Anglia please call +44 (0)1945 474747 or email info@anglia.com
|
||
