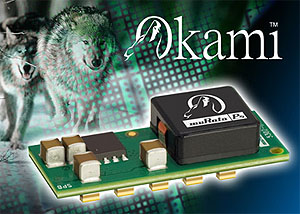

12V input SMT modules added to the MurataPS OKAMI™ family

Okami from Murata Power Solutions - OKY-T/10-D12P-C, OKY-T/10-D12N-C, OKY2-T/10-D12P-C, OKY2-T/10-D12N-C, OKY-T/16-D12P-C, OKY-T/16-D12N-C, OKY2-T/16-D12P-C, OKY2-T/16-D12N-C

Murata Power Solutions have added eight new 12V input models to their DOSA compliant Okami™ range of non-isolated point-of-load (PoL) DC/DC converters.

The latest additions comprise both 10A and 16A models, with negative or positive on/off control, and the OKY2 variants support the sequence/tracking feature. The surface mount (SMT) modules provide an ideal drop-in replacement for other DOSA-compliant parts in space constrained designs that require high density, high efficiency power solutions.

Features

Output currents of 10A and 16A
Programmable output voltage from 0.75V to 5.5V
Up to 1000µF output capacitance
High efficiency up to 94.5%
Wide input voltage range 8.3VDC to 14VDC
Optional sequence/tracking feature

Models	Output			Input	On/Off Logic
	Voltage (V)	Current (A)	Power (W)	Voltage (Vdc)
OKY-T/10-D12P-C	0.75-5.5	10	50	12 (8.3-14)	Positive
OKY-T/10-D12N-C					Negative
OKY2-T/10-D12P-C					Positive
OKY2-T/10-D12N-C					Negative
OKY-T/16-D12P-C		16	80		Positive
OKY-T/16-D12N-C					Negative
OKY2-T/16-D12P-C					Positive
OKY2-T/16-D12N-C					Negative
