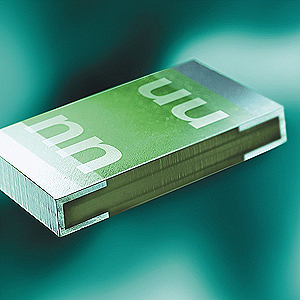

Schurter spotlights first chip fuse for high current protection up to 25A in a 1206 package
 |
Schurter has announced the release of the first 1206 chip fuse series UST 1206 with rated current values up to 25 A and slow-blow characteristic. It boasts high melting I2t values, which provides good inrush withstand performance. It’s a cost-effective solution for applications in which high inrush current and on-off cycling are present. |
The UST 1206 with characteristics according to UL 248-14 complements the USI 1206 with characteristics according to IEC 60127-4 . The current ratings of the UST 1206 range from 7 to 25 A with voltage ratings up to 63 VDC and 32 VAC. The device provides a breaking capacity of up to 400 A, and an operating temperature range of - 55°C to +90°C.
The fuse is designed to provide secondary over current protection in applications such as power inverters and back lit DC-AC inverters for monitors, where power consumption is high at a low voltage level, e.g. 5 or 12 VDC. The legend marking on each fuse allows a clear visual identification.
The fuse is approved according to UL 248-14 and holds a cURus approval.For more information, or details on the full range of SCHURTER products available from Anglia, please call +44 (0)1945 474747 or email info@anglia.com
|
||
