Murata GJ8 series of low-profile capacitors reduces acoustic noise by up to 30dB

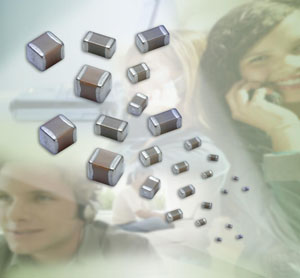

Murata's GJ8 series of multi-layer ceramic chip capacitors (MLCCs) has been specifically developed to reduce acoustic noise in consumer and industrial electronics applications. Sound can be generated by the MLCCs at the input to the DC-DC converter in a notebook PC, or by capacitors in the control circuit of the LCD module in a mobile phone.

This problem is caused by the expansion and contraction of the dielectric element in some MLCCs, which causes the PCB to vibrate at the amplitude of the voltage applied. When the frequency of the voltage applied approaches audio frequencies, a noise can be heard.

Murata's GJ8 series has been specially designed to reduce this problem and is available with capacitance between 1 and 10µF. The acoustic noise generated by 4.7 to 10µF GJ8 series capacitors represents an improvement of at least 10dB over ordinary MLCCs; for 1µF models the improvement is up to 30dB. The series is available in low-profile models with thicknesses of just 1.25, 1.60 or 2.50 mm depending on capacitance. Rated voltage is up to 50V.

For more information, or details on the full range of Murata products available from Anglia please call +44 (0)1945 474747 or email info@anglia.com

Alternatively, click on this link to go to the main Murata section where you can view other news articles and product data.
