New encoders from Knitter-Switch can be user defined to fit specific applications

Knitter-Switch produces a wide range of encoders designed specifically for applications in the consumer, industrial and automotive industries. Described by some as rotary pulse switches, encoders are compact electromechanical devices which convert rotary motion into a digital pulse or signal.

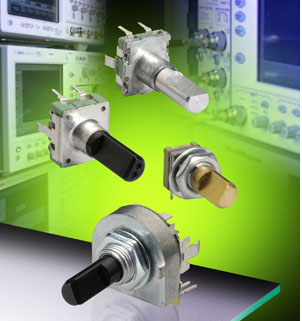

The Knitter-Switch MER Series includes the latest encoders to be made available. As standard, they are offered in vertical or horizontal versions with shaft lengths of up to 25mm. A variety of shaft types can be specified depending on the end application. These include metal flattened pin, knurled, cut and insulated plastic pin. Custom shafts for most applications can also be provided on request.

With an impulse frequency of between 12 and 24 pulses for each rotation, users can define the encoder’s output to suit their individual requirements. Also, to save PCB space, customers can specify an encoder with an integrated switch, eliminating the need for an extra device.

The MER Series features a contact rating of 5VDC, 10mA and a mechanical life of up to 30 000 operations. Versions are available for PCB mount or single hole mounting.

For more information, or details on the full range of Knitter-Switch products available from Anglia, please call +44 (0)1945 474747 or email info@anglia.com

Alternatively, click on this link to go to the main Knitter-Switch section where you can view other news articles and product data.
