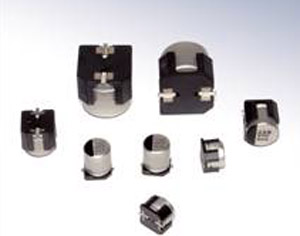

The Panasonic FP series – leading the field in ultra low ESR SMD aluminium electrolytic capacitors

Panasonic Industrial Europe is one of the leading suppliers for standard and customized passive components. Their wide product portfolio, coupled with global manufacturing, allows them to meet many specific design needs for passive components.

In terms of ESR (Equivalent Series Resistance) this new FP-Series of 105°C SMD Aluminium Electrolytic Capacitors achieves values close to polymerized organic semiconductor capacitors.

In detail, the ESR value of an FP-Series G-case size is now only 60 mΩ and an FP-Series F-case size is a maximum of 80 mΩ over the capacitor lifetime (2000h@105°C). These very low ESR values enable a ripple current of 1190mA@100kHz/105°C.

In comparison to the current Panasonic FK-series the ESR values have been decreased nearly by 50%.

Currently in the FP series, Panasonic offers a voltage range from 6,3V to 35V and a capacitance range starting from 4,7uF to 1800uF. Further CV-values are under development so please enquire for further updates.
A further advantage of the FP-series is the higher soldering temperatures for lead-free reflow soldering for example:

If you require high vibration and shock resistance, the FP-series can also be supplied in an Anti-vibration version, with special supportive terminals and a higher bottom plate socket enabling these capacitors to withstand up to 30G acceleration. The vast majority of the values in the FP-series are available as Anti-vibration versions.

The FP-series attains all relevant automotive standards and is suitable for automotive, telecommunication and industrial applications.

The FP-series is in mass production and samples are available now.

In Conclusion - the FP-series from Panasonic is one of the most sophisticated SMD Aluminium Electrolytic Capacitor series available worldwide today.
