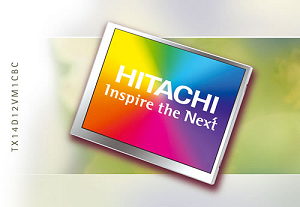

Hitachi launches compact 5.7 inch TFT display with LED backlight

Hitachi Display Products Group has announced the TX14D12VM1CBC, an addition to the existing range of compact 5.7 inch that offers the high performance demanded by industrial customers together with all the benefits of LED backlighting such as low power usage.

By ensuring outline compatibility across the range of 5.7” TFT and STN displays, Hitachi continues to provide customers with choice to meet any design requirement in addition to a reputation for quality and reliability.

“The launch of the TX14D12VM1CBC offers a clear upgrade path for customers wanting to use mechanically compatible monochrome and TFT options. In common with the recently released SP14Q011-A, the TX14D12VM1CBC delivers QVGA resolution and an LED backlight packaged within the same compact outline dimensions,” says Mark Stephenson, Product Manager for Hitachi Display Products Group. “While delivering consistently high levels of performance, the long life LED backlight helps reduce power consumption and removes the need for a high voltage inverter.”

Operating over a wide temperature range of -20 to +70°C the TX14D12 delivers customers 320(w) x 240(h) QVGA resolution in the (W)131.0mm x (H)102.2mm x (D)10.9mm form factor compatible with existing compact modules. The normally white transmissive colour TFT displays 262,000 colours, while clear, bright images for all lighting conditions and uses are assured with 350cd/m2 and a contrast ratio of 350:1.

Hitachi Display Products Group is also able to design and develop customised STN display modules for specific customer requirements.

For more information on the full range of Hitachi products available from Anglia please call +44 (0)1945 474747 or email info@anglia.com

Alternatively, click on this link to go to the main Hitachi section where you can view other news articles and product data.
